sticky-Slide VI 0.4

sticky-Slide VI 0.4 View larger

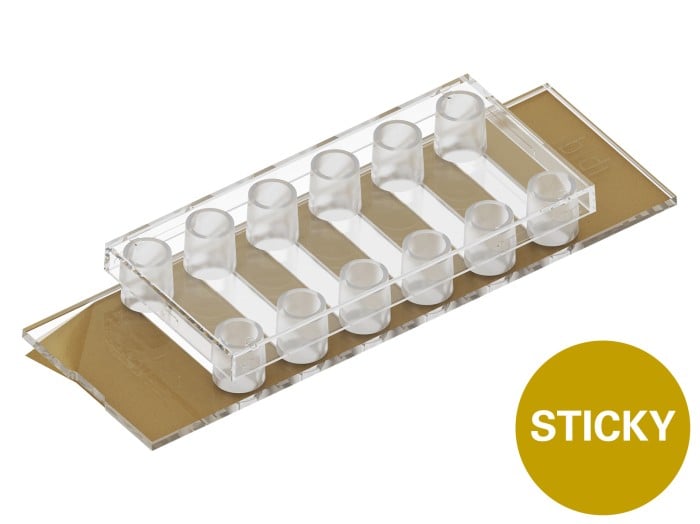

A bottomless 6 channel slide used for cell culture applications with a self-adhesive underside to which own substrates can be mounted

  • Versatile – i.e., permits the mounting of a variety of bottom materials
  • Cost-effective experiments with small numbers of cells and low volumes of reagents

More details

15

Product Details

Applications:

Specifications:

Adapters Female Luer
Volume per reservoir 60 µl
Number of channels 6
Volume of each channel 30 µl
Height of channels 0.4 mm
Length of channels 17 mm
Width of channels 3.8 mm
Growth area per channel 0.6 cm2
Bottom none

Technical Features:

  • Bottomless slide
  • Self-adhesive underside
  • Biocompatible adhesive that has been cell culture tested
  • Adheres to all flat surfaces, even wet surfaces
  • Female Luer adapters for connection to tubing and pump systems
  • Sterile packaging
  • Suitable coverslips available
  • Specifications identical to those of the µ-Slide VI 0.4, except that it has no bottom

Example: Setup of a Sample Squeezed into a Channel sticky-Slide

Technical Drawing

Technical drawings and details are available in the Instructions (PDF).
