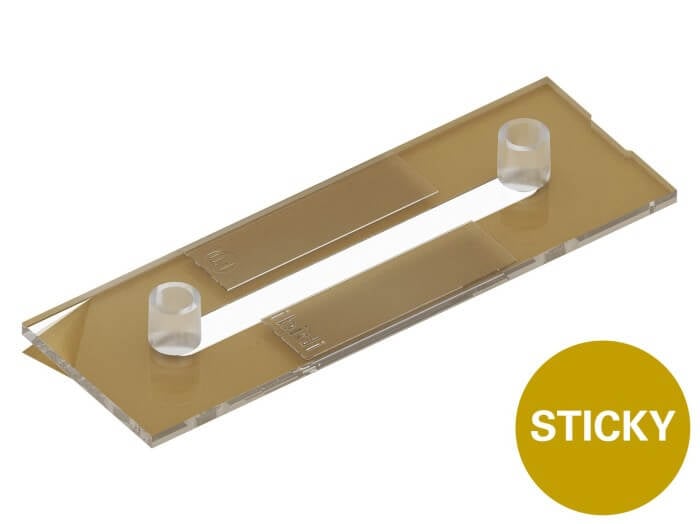

sticky-Slide I Luer
A bottomless channel slide used for perfusion applications with a self-adhesive underside to which own substrates can be mounted
- Versatile – i.e., permits the mounting of a variety of bottom materials
- Available in various channel heights from 0.1 to 0.8 mm
Buy 4 - Get 1 Free
| Quantity | Discount |
|---|---|
| 5 | 20% |
Product Details
Applications:
- Inserting materials or tissue into perfusion channels
- Running of shear stress experiments on any substrate
- Usable with a range of bottom materials, such as plastic sheets, silicon chips, and glass slides
Technical Features:
- Bottomless slide
- Self-adhesive underside
- Cell culture tested biocompatible adhesive
- Adheres to all flat surfaces, even wet surfaces
- Includes female Luer adapters for connection to tubing and pump systems
- Sterile packaging
- Suitable coverslips available
- Specifications identical to those of the µ-Slide l Luer, except that it has no bottom
Specifications:
| sticky-Slide I | 0.1 Luer | 0.2 Luer | 0.4 Luer | 0.6 Luer | 0.8 Luer |
| Volume of the channel (µl) | 25 | 50 | 100 | 150 | 200 |
| Height of the channel (µm) | 100 | 200 | 400 | 600 | 800 |
| Channel length | 50 mm | ||||
| Adapters | Female Luer | ||||
| Volume per reservoir | 60 µl | ||||
| Growth area per channel | 2.5 cm2 | ||||
| Bottom | none | ||||
Example 1:
Sample Insertion into a Channel for Perfusion Studies
Example 2:
Setup of a Sample Squeezed into a Channel
