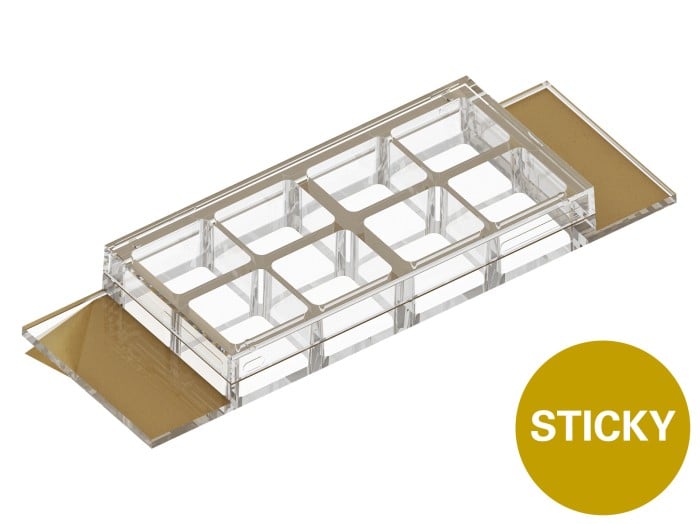

sticky-Slide 8 Well

sticky-Slide 8 Well View larger

An 8 well bottomless µ-Slide with a self-adhesive underside to which own substrates can be mounted

  • Versatile – i.e., permits the mounting of a variety of bottom materials
  • Has an open well format used for classic cell culture applications, which can be run on any custom surface
  • 8 fold sample preparation

More details


Product Details


  • Housing for various cell culture applications
  • Usable with a range of bottom materials, such as plastic sheets, silicon chips, circuit boards, glass coverslips, and glass slides


Number of wells 8
Dimensions of wells
(w x l x h) in mm
9.4 x 10.7 x 6.8
Volume per well 300 µl
Total height with lid 8 mm
Growth area per well 1.0 cm2
Bottom none

Technical Features:

  • Bottomless slide
  • Self-adhesive underside
  • Biocompatible adhesive that has been cell culture tested
  • Adheres to all flat surfaces, even wet surfaces
  • Sterile packaging
  • Suitable coverslips available
  • Removable with acetone
  • Specifications identical to those of the µ-Slide 8 Well, except that it has no bottom

Example 1:
Spotted Coverslip Housing (i.e., Protein or DNA Spots)

Example 2:
Circuit Board Housing

Technical Drawing

Technical drawings and details are available in the Instructions (PDF).
