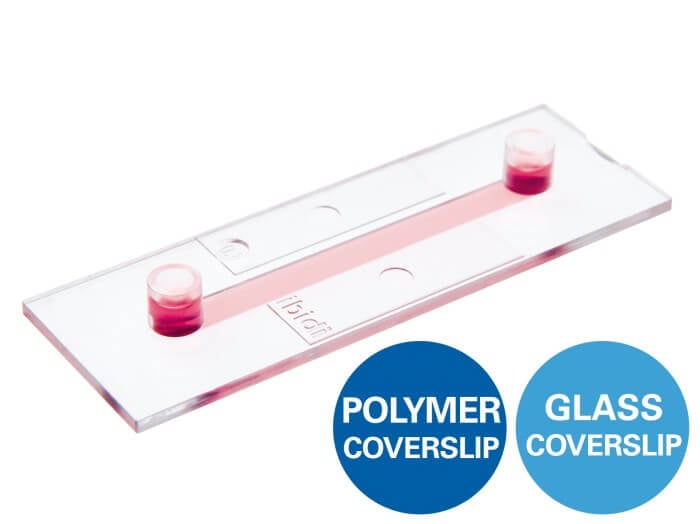

µ-Slide I Luer

Channel slides with different heights, volumes, and coatings specially suited for flow applications

Large area of uniform shear stress

Easy connection using Luer adapters

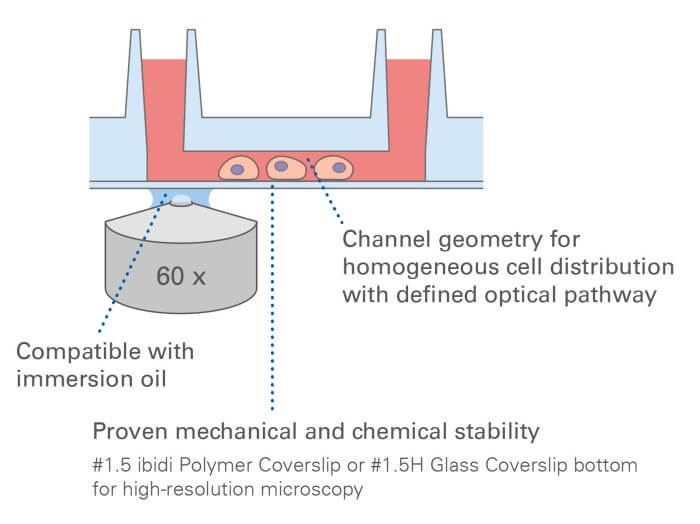

Homogeneous cell distribution with defined optical pathway
Recipient :

Name of your friend ^* :

E-mail address of your friend ^* :

^* Required fields

or Cancel
Print

Channel slides with different heights, volumes, and coatings specially suited for flow applications

Large area of uniform shear stress
Easy connection using Luer adapters
Homogeneous cell distribution with defined optical pathway

More details

Surface Modification

Pcs./Box

Channel Height

Product Details

Applications

Adherent cells under flow conditions
Cell culture (static or stop-flow)
3D cell culture in gels brought into the channels
High-resolution microscopy of living and fixed cells

Specifications

Channel length	50 mm
Channel width	5 mm
Adapters	Female Luer
Volume per reservoir	60 μl
Growth area	2.5 cm²
Coating area	5.2 / 5.4 / 5.6 / 5.8 cm²
Bottom: ibidi Polymer Coverslip

Technical Features

Standard format with thin bottom for low or high magnification microscopy (up to 100x)
Large observation area for microscopy
Channel volumes of 50 μl, 100 μl, 150 μl, or 200 μl
Defined shear stress and shear rate levels
Easy connection to tubes and pumps using Luer adapters
Available as variety pack containing all heights
Fully compatible with the ibidi Pump System

Cells Cultured Under Static or Flow Conditions

Flow cultivation

Static cultivation

Cross Section of the Channel: Same Slide – Different Channel Height and Volume

* not recommended for static culture over more than 6 hours

Choosing the Right Channel for Flow Applications

For flow assays with small amounts of medium and high values of shear stress	0.2 mm channel
For a wide range of shear stress	0.4 mm channel
For controlling low values of shear stress (<2 dyne /cm²)	0.6 and 0.8 mm channels

Static Cultures vs. Flow Applications

The general rule is:
Low channels are more suitable for flow applications.
High channels are more suitable for static cell culture.

Select the ideal Perfusion Set for your flow application here.

Compatible with Solvents for Staining and Fixation

HUVEC, cultivated over 7 days at 10 dyn / cm². VE-cadherins are stained in green, cell nuclei are stained in blue.

Influence of Shear Stress on Cultured Cells

Human umbilical vein endothelial cells (HUVEC) cultured under flow conditions (20 dyn / cm²) in a µ-Slide I^0.4 Luer over 9 days. The primary cells were transduced with the adenoviral vector rAV^CMV-LifeAct-TagRFP 24 hours prior to the experiment.

Supporting Material

Instructions

Instructions µ-Slide I Luer (PDF)

Application Notes

Movies

Scientific Posters

Changes in cell-cell contacts of endothelial cells (HUVEC) under long term shear stress conditions (PDF)
Presented at the North American Vascular Biology Organization (NAVBO) Conference 2014, Monterey, California, USA.
Defining the Critical Shear Stress Range in Long Term HUVEC Cell Culture (PDF)
Presented at the 17^th Barrier and Transporter Meeting 2015, Bad Herrenalb, Germany.

Webinars

Product Flyer

FAQ

Movies

	HUVEC Culture Under Perfusion vs. Static Conditions (MV 10)
	The ibidi Pump System (MV 20)
	Long-Term Cell Culture Under Perfusion (MV 21)

Practical Course

PRACTICAL COURSE
